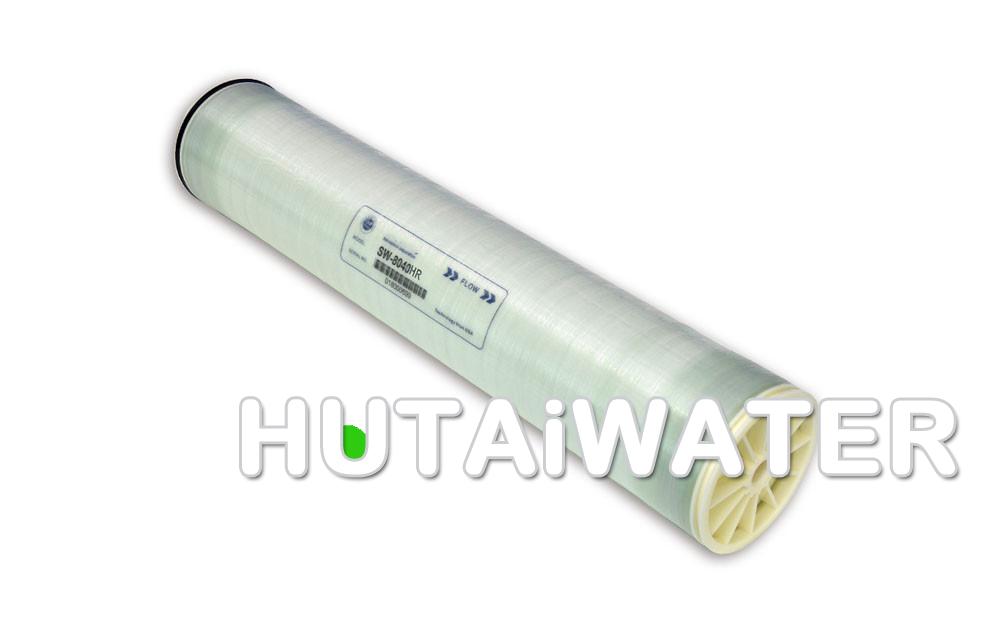

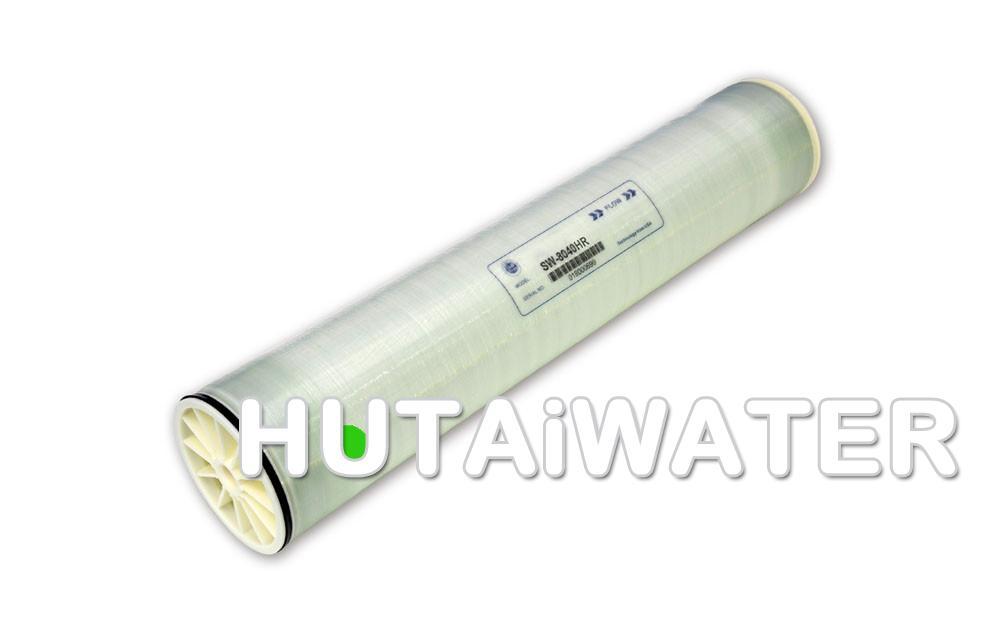

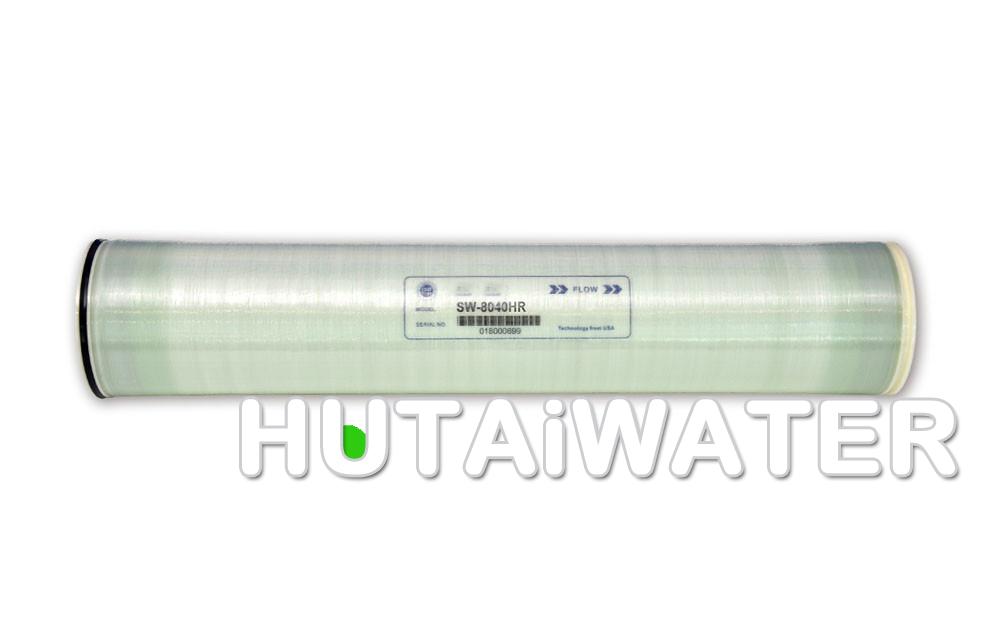

Seawater Desalination RO membrane Element SW8040
- PRODUCT DETAIL
Product Categary:
Sea Water Membrane Element
Main Feature:
High rejection rate and large flux.
USAGE
It is applicable to the desalination of raw water with salt concentration between 15000ppm and 40000ppm, and make removal for the boron is more than 90%. This membrane model was widely applied to the desalination of sea water and high concentration brackish water, concentration and recycle treatment for high salt wastewater.
SPECIFICATIONS & PARAMETERS
|
Model |
Active Membrane Area ft2(m2) |
Permeate Flow GPD(T/D) |
Stable Rejection Rate (%) |
|
SW-8040 |
400(37.2) |
9000(34.1) |
99.7 |
STANDARD TEST CONDITION
|
Concentration of Solution (NaCl) |
Temperature（℃） |
pH Value |
Operating Pressure psi(MPa) |
Recovery Rate (%) |
|
32000ppm |
25 |
7.5-8 |
800(5.5) |
8 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
|
Max.Working Pressure |
1200 psi(8.3MPa) |
|
Max. FeedWater Temperature |
45 ℃ |
|
Max. Feed Water Flow |
17.0m3/h |
|
Max. FeedWaterSDI15 |
5.0 |
|
Free Chlorine Concentration of FeedWater |
0.1mg/L |
|
pHRange of FeedWaterDuring Continuous Operation |
2-11 |
|
pHRange of FeedWaterDuring Chemical Cleaning |
1-13 |
|
Max. Pressure Drop of Single Membrane Element |
15psi(0.1Mpa) |
