Cheap MBR membrane
- PRODUCT DETAIL
We provide factory price and OEM services.
Membrane Bioreactor Specification

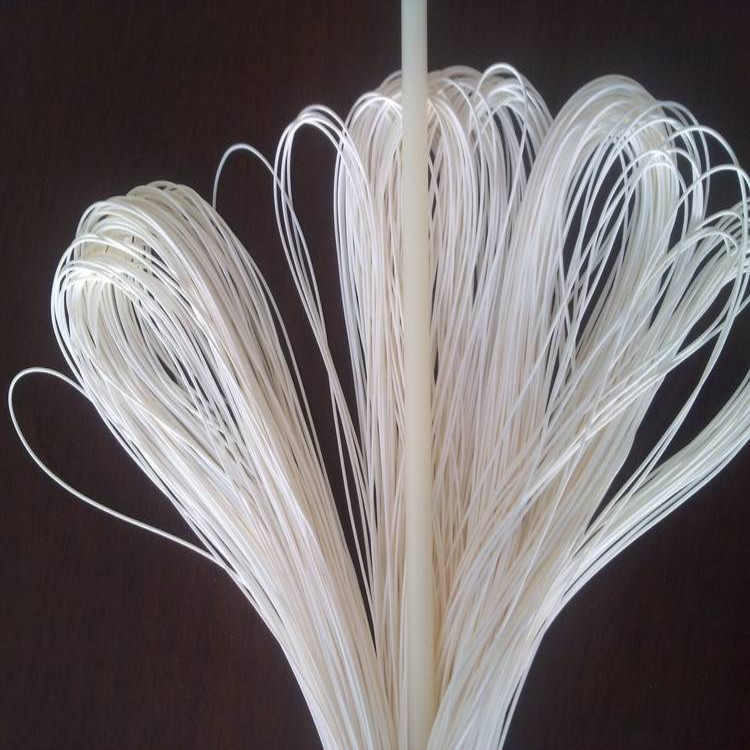

Membrane type: Hollow Fiber - Curtain.
Membrane material: PVDF with re-enforced material inside.
Membrane pore size: 0.05um (remove suspendid solids and bacteria to achieve SS<=5mg/L, turbidity < =1NTU)
MWCO: 30 000 ~ 100 000dalton
Advantages:
Strong (with re-enforced inside)
Good tensile strength.
Available for backwashing, Air-scrubbing washing, strong acid and akaline chemical cleaning.
Long life.
High flux.
Anti-fouling.
Easy for installatoin and maintance.
Low investment, low power consumption and operation cost.
|
MBR components |
Component model |
HT-MBR-10 |
HT-MBR-15 |
HT-MBR-20 |
HT-MBR-25 |
|
|
Performance parameter |
Membrane material |
Polyvinylidene fluoride composite hydrophilic membrane |
||||
|
Average pore size(µm) |
0.05 |
|||||
|
Inner and outer diameter of filaments(mm) |
1.1/1.98 |
|||||
|
Membrane area(m2) |
10 |
15 |
20 |
25 |
||
|
Module size |
Nominal size of Module (mm) |
1000×535×46 |
1500×535×46 |
2000×535×46 |
2000×1250×30 |
|
|
Use material |
Interface size |
DN32/DN20 |
||||
|
End material |
ABS |
|||||
|
Sealing material |
Polyurethane / epoxy |
|||||
|
Operating conditions |
||||||
|
Conditions of use |
Temperature range(℃) |
5-35 |
||||
|
Continuous operation of PH range |
1-10 |
|||||
|
Maximum tolerance(NaCLO ppm) |
5000 |
|||||
|
Running flux(LMH) |
15-25 |
|||||
|
Back Wash Flow(LMH) |
30-50 |
|||||
|
Chemical backwash PH range |
1-13 |
|||||
|
Running transmembrane pressure difference(MPa) |
0-0.03 |
|||||
|
Product water turbidity(NTU) |
≤0.5 |
|||||
