Supply Ability
-
Supply Ability:
-
1000 Square Meter/Square Meters per Day
Packaging & Delivery
-
Packaging Details
-
5PCS-10PCS/Case
-
Port
-
Ningbo
-
Lead Time :
-
|
Quantity(Pieces)
|
1 - 5
|
>5
|
|
Est. Time(day)
|
5
|
To be negotiated
|
We provide factory price and OEM services.

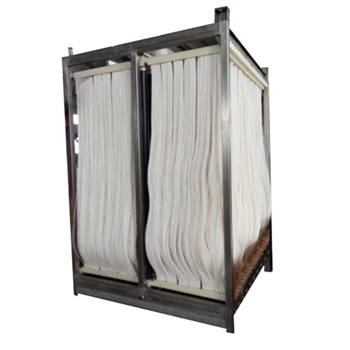

Membrane Bioreactor Specification
Membrane type: Hollow Fiber - Curtain.
Membrane material: PVDF with re-enforced material inside.
Membrane pore size: 0.05um (remove suspendid solids and bacteria to achieve SS<=5mg/L, turbidity < =1NTU)
MWCO: 30 000 ~ 100 000dalton
Advantages:
Strong (with re-enforced inside)
Good tensile strength.
Available for backwashing, Air-scrubbing washing, strong acid and akaline chemical cleaning.
Long life.
High flux.
Anti-fouling.
Easy for installatoin and maintance.
Low investment, low power consumption and operation cost.
|
MBR components
|
Component model
|
WT-MBR-10
|
WT-MBR-15
|
WT-MBR-20
|
WT-MBR-25
|
|
|
Performance parameter
|
Membrane material
|
Polyvinylidene fluoride composite hydrophilic membrane
|
|
|
Average pore size(µm)
|
0.05
|
|
|
Inner and outer diameter of filaments(mm)
|
1.1/1.98
|
|
|
Membrane area(m2)
|
10
|
15
|
20
|
25
|
|
|
Module size
|
Nominal size of Module (mm)
|
1000×535×45
|
1500×535×45
|
2000×535×45
|
2000×1250×30
|
|
|
Use material
|
Interface size
|
DN32/DN20
|
|
|
End material
|
ABS
|
|
|
Sealing material
|
Polyurethane / epoxy
|
|
|
Operating conditions
|
|
|
Conditions of use
|
Temperature range(℃)
|
5-35
|
|
|
Continuous operation of PH range
|
1-10
|
|
|
Maximum tolerance(NaCLO ppm)
|
5000
|
|
|
Running flux(LMH)
|
15-25
|
|
|
Back Wash Flow(LMH)
|
30-50
|
|
|
Chemical backwash PH range
|
1-13
|
|
|
Running transmembrane pressure difference(MPa)
|
0-0.03
|
|
|
Product water turbidity(NTU)
|
≤0.05
|
|
