PVDF Hollow fiber UF Membrane Column membrane for seawater desalination

Product Item: 36
Category: UF membrane
Views: 1179
Brand Name: Hutai
Material: PVDF
Weight: 0.5T
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support

  • PRODUCT DETAIL



Supply Ability

Supply Ability:
50000 Piece/Pieces per Month


Packaging & Delivery
Packaging Details
1piece / 1carton
Port
Ningbo
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(day) 7 To be negotiated

We provide OEM services.We offer factory price.


Specifications

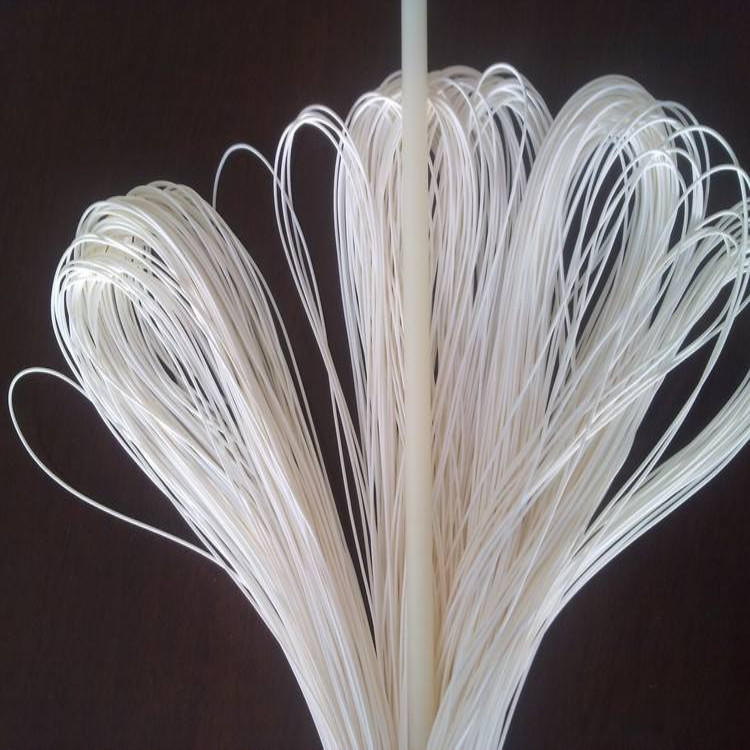

1. Advance PVDF Hollow fiber UF Membrane;
2. Equivalent to DOW UF Membrane 2860 size;
3. Good performance, cheap price.

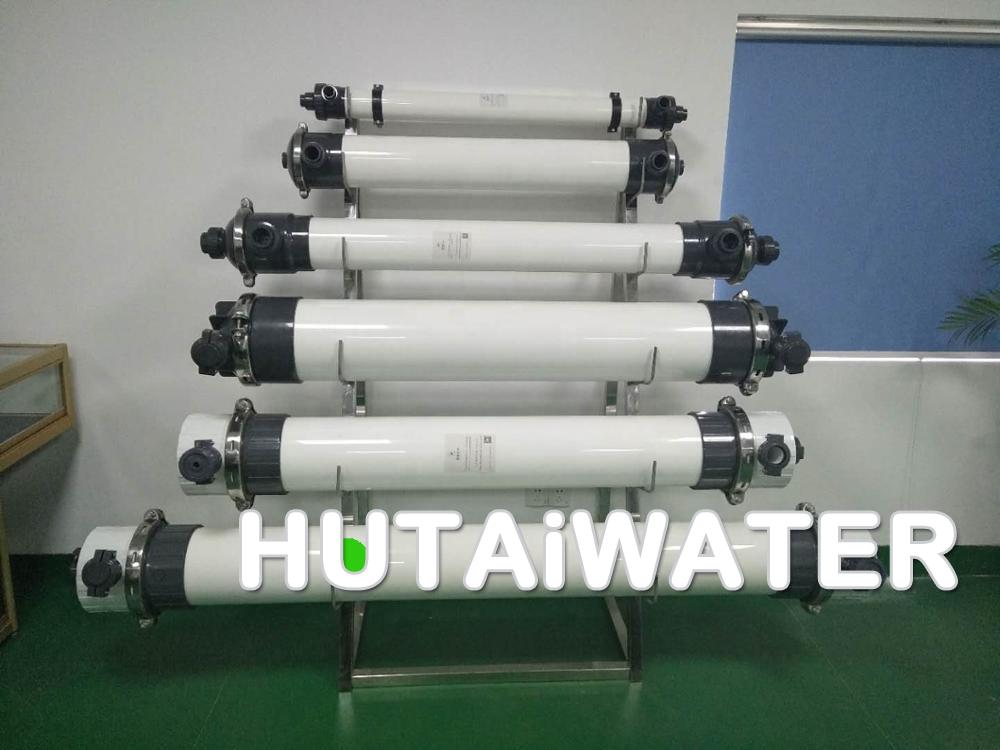

PVDF Hollow fiber UF Membrane Column membrane for seawater desalination


Model specification Unit L L1 L2 L3 D W1 W2
WT-8060 mm 1860±3 1500 1630±3 1820±3 225 180 342
WT-8080 mm 2360±3 2000 2130±3 2320±3 225 180 342


PVDF Hollow fiber UF Membrane Column membrane for seawater desalination


Model specification φd φD L1 L2 H φd1 Remarks
WT-1060 250 290 173 73 172 50 Coupling or Union Interface
WT-6060 160 220 274 214 170 40/50 Union Interface



Basic parameters of membrane module

Component model

WT-4040

WT-6060

WT-8060

WT-8080

WT-1060

Membrane material

Vinylidene fluoride (PVDF)

Inner and outer diameter of filaments

0.7/1.3mm

Average pore size

0.03µm

Membrane area

7m2

32m2

52m2

72m2

55m2

Performance

Pure water initial flux

120L/m2·h

Turbidity of water production

≤0.1 NTU

Suspended matter

Raw water is up to grade two emission

≤1mg/L

Coliform group

not detected

Guaranteed useful life

3~5 years

Conditions of use

Operation mode

Outside-in

Operation mode

Constant pressure / constant current

Operation mode

Full filtration or cross flow filtration

Two design flux of sedimentation tank effluent

40~60L/(m2•h)(20℃Pa)

Working temperature

5-45℃

Maximum inflow pressure

0.3MPa

Maximum inflow volume

150L/m2·h

Maximum transmembrane pressure difference

0.15MPa

pH  range

2-11(When CIP cleaning 1-12)

Maximum backwash water flow

100-150L/m2·h

Backwash frequency

20~60min


Using Conditions

1. Suitable for following applications:

Drinking water production (raw water as tap water, ground water, surface water, etc.),

Reuse of sewage (filtration of secondary effluent),

Pretreatment for RO membrane process (seawater desalination, wastewater reuse, industrial water production),

Reuse of industrial wastewater (waste water standard: SS < 30ppm, COD < 120ppm, BOD5 < 30ppm);

2. pH range: 3-10 (2-12 when doing cleaning);

3. Max. feed water turbidity: 15NTU;

4. Max. feed water pressure: 0.30MPa;

5. Pretreatment filter mesh size: smaller than 500 micron meter;

6. Oil concentration in raw water must be less than 2mg/L, otherwise it must be removed by pretreatment;

7. Design pure water flux: 1.5-5.0 m3/h;

8. Max. TMP (trans-membrane pressure): 0.15MPa (chemical cleaning is needed when TMP is more than 0.12MPa.);

9. Operating temperature range: 5-45 °C;

10. Max. free chlorine concentration in cleaning solution: 1000 mg/L;

11. Operation type: cross flow or full flow.

For more application information, please do not hesitate to send us a message.
