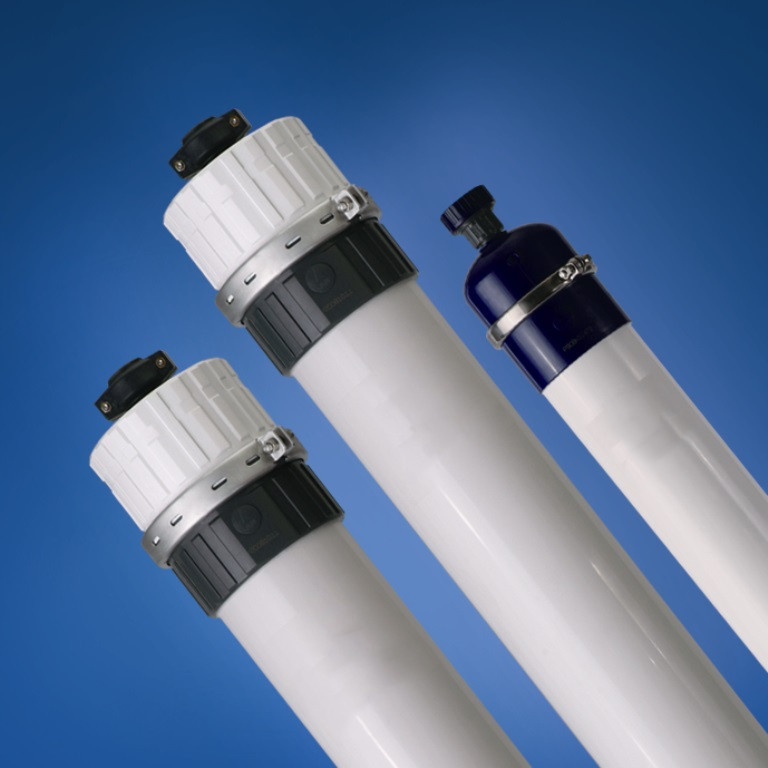

PVDF Hollow fiber UF membrane equal to DOW UF SFP2880
- PRODUCT DETAIL

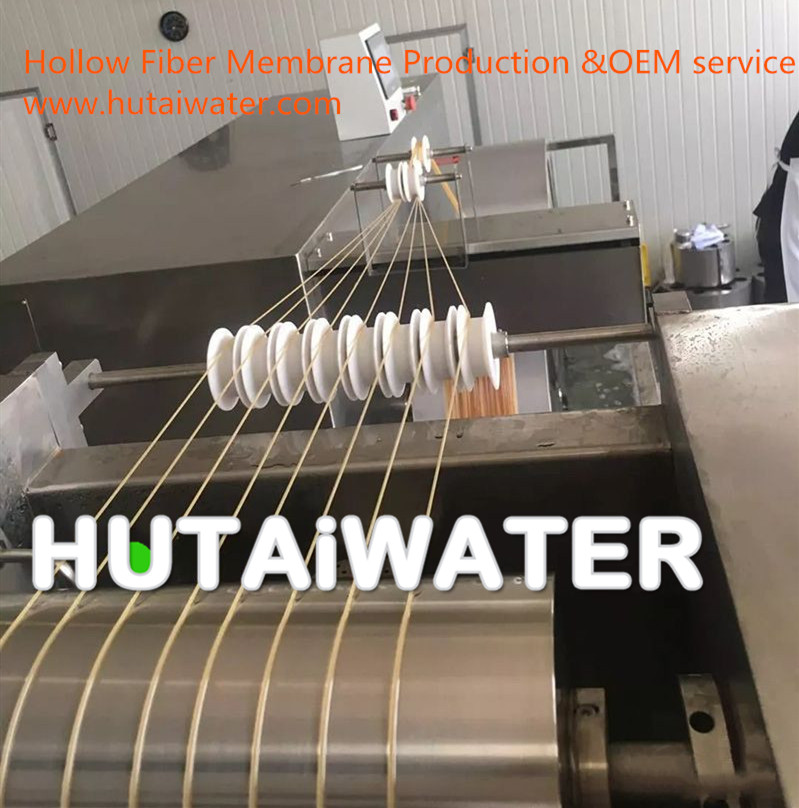

We provide OEM services.We offer factory price.
Specifications
1. Advance PVDF Hollow fiber UF Membrane;
2. Equivalent to UF Membrane SFP-2860 size;
3. Good performance, factory price.

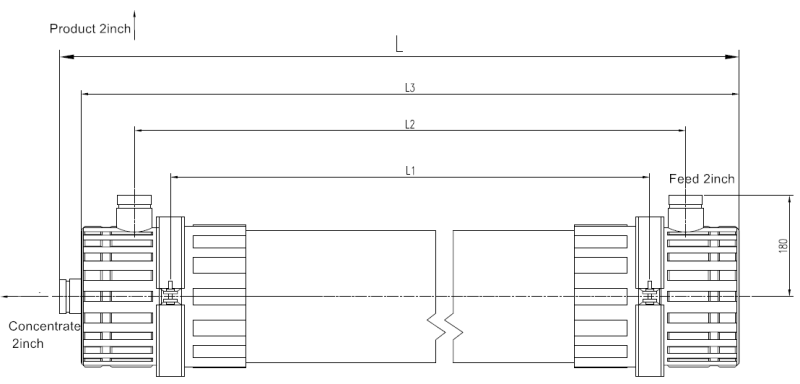

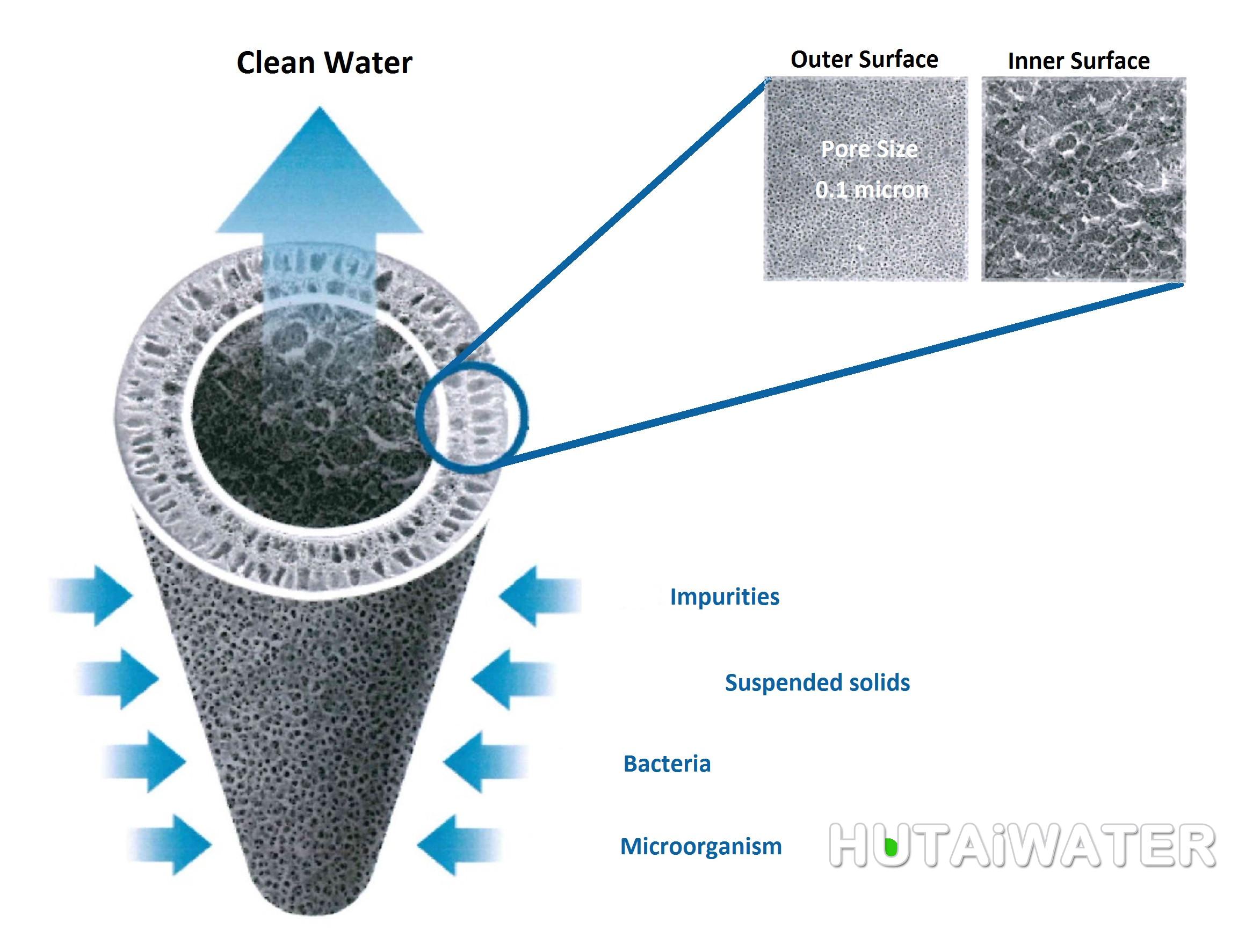

PVDF Outside-in Hollow Fiber UF Membrane
|
Specification type |
Unit |
L |
L1 |
L2 |
L3 |
D |
W1 |
W2 |
|
HT-8060 |
mm |
1860±3 |
1500 |
1630±3 |
1820±3 |
225 |
180 |
342 |
|
HT-8080 |
mm |
2360±3 |
2000 |
2130±3 |
2320±3 |
225 |
180 |
342 |
|
Basic parameters of membrane module |
Component model |
HT-4040 |
HT-6060 |
HT-8060 |
HT-8080 |
HT-1060 |
|
|
Membrane material |
Vinylidene fluoride (PVDF) |
||||||
|
Inner and outer diameter of filaments |
0.7/1.3mm |
||||||
|
Average pore size |
0.03µm |
||||||
|
Membrane area |
7m2 |
32m2 |
52m2 |
72m2 |
55m2 |
||
|
Performance |
Pure water initial flux |
600~800L/m2·h |
|||||
|
Turbidity of water production |
≤0.1 NTU |
||||||
|
Suspended matter |
Raw water is up to grade two emission |
≤1mg/L |
|||||
|
Coliform group |
not detected |
||||||
|
Guaranteed useful life |
3~5 years |
||||||
|
Conditions of use |
Operation mode |
Outside-in |
|||||
|
Operation mode |
Constant pressure / constant current |
||||||
|
Operation mode |
Full filtration or cross flow filtration |
||||||
|
Two design flux of sedimentation tank effluent |
40~60L/(m2•h)(20℃Pa) |
||||||
|
Working temperature |
5-45℃ |
||||||
|
Maximum inflow pressure |
0.3MPa |
||||||
|
Maximum inflow volume |
150L/m2·h |
||||||
|
Maximum transmembrane pressure difference |
0.15MPa |
||||||
|
pH range |
2-11(When CIP cleaning 1-12) |
||||||
|
Maximum backwash water flow |
100-150L/m2·h |
||||||
|
Backwash frequency |
20~60min |
||||||
