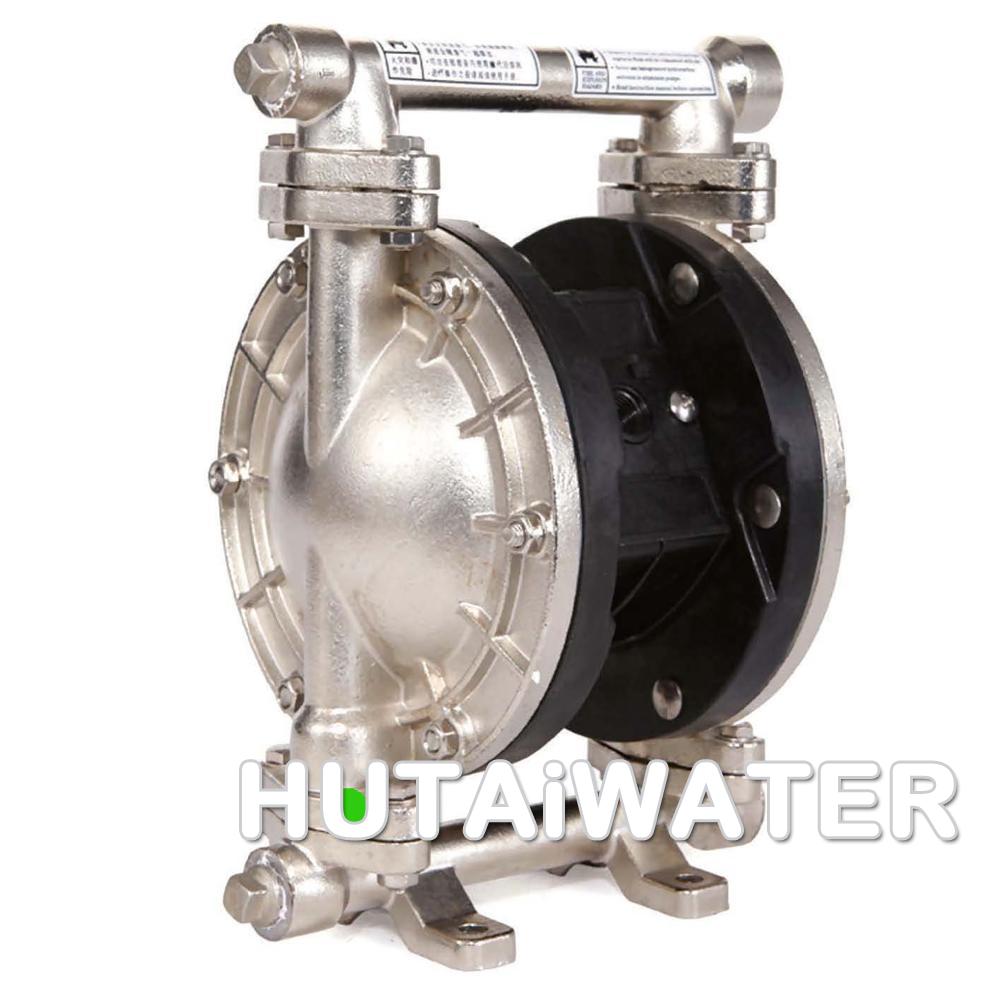

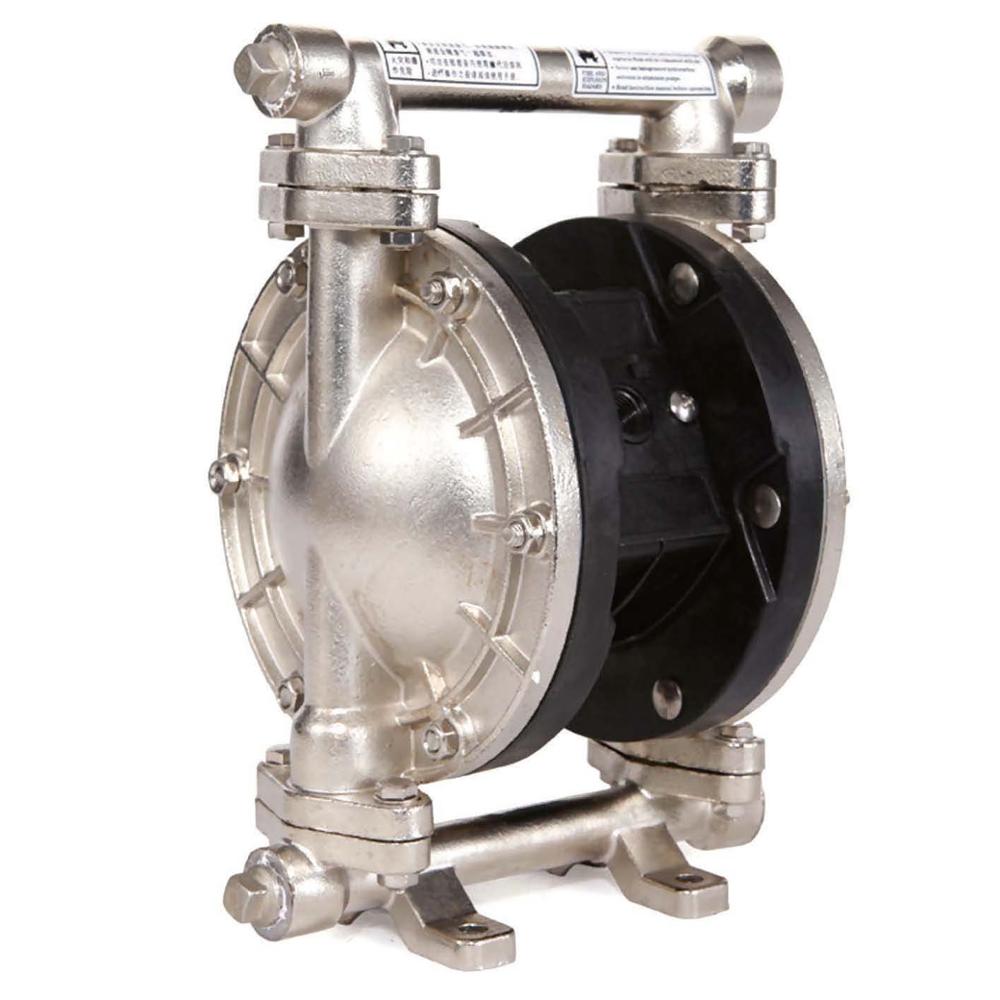

Specifications

QBY3-10                                  QBY3-15

Max. Flow                             5.0gpm(18.9lpm)                    5.0gpm(18.9lpm)

Max. Working Pressure        100 psi (0.7Mpa, 7bar)          100 psi (0.7Mpa, 7bar)

Fluid Inlet Size                      3/8 in. npt(f) 3/8 in. npt(f)

Fluid outlet Size 3/8 in. npt(f)                           3/8 in. npt(f)

Air Inlet Size                          1/4 in.npt(f)                            1/4 in.npt(f)

Max. Suction Height(Dry suction)  8~10ft.(2.5-3m)              8~10ft.(2.5-3m)

Max.Permitted Grain                      0.06 in.(1.5mm)             0.06 in.(1.5mm)

Max.Air Consumption                     9.0 scfm                         9.0 scfm

Every Stroke Flow                          0.006 gal.(23cc)            0.006 gal.(23cc)

Every Reciprocating Flow              0.012 gal.(46cc)             0.012 gal.(46cc)

Max. Reciprocating Speed    Dry running 320 cpm               320cpm

Max. Reciprocating Speed    Wet running 250 cpm              250 cpm

Pump body structure materials:Cast steel Aluminum alloy PP stainless steel PTFE.
