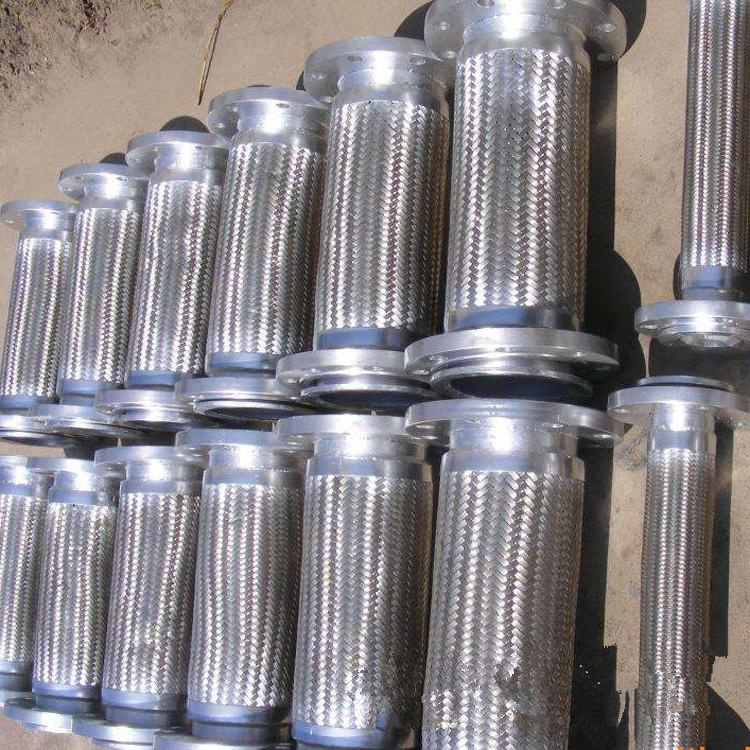

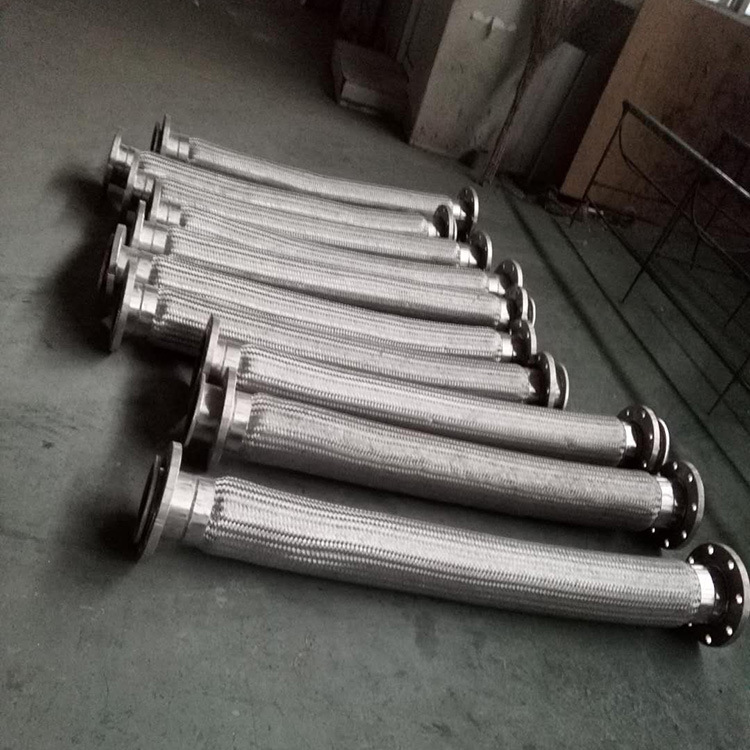

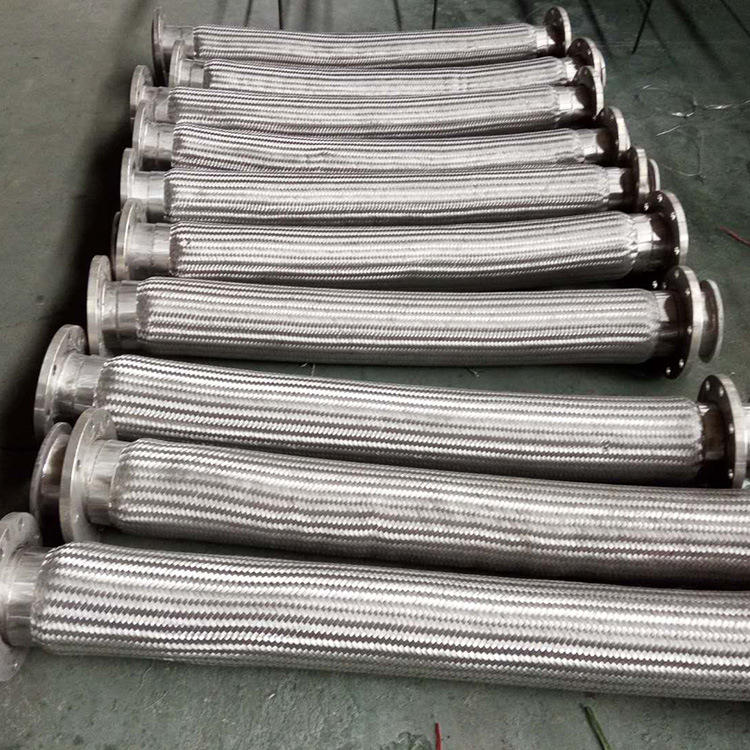

Stainless Steel Braided Galvanized Metal Flange Connection Flexible Hose

Application:

Braided Metal Flange Hose Used for pump to link with tube, absorbing vibration and reducing the noise.

Applied for larger offest and where the installing space is limited.

The stainless steel metal braided hose has the characteristics of corrosion resistance, high temperature resistance, low temperature resistance (196 ~420 ~C), light weight, small volume and good flexibility. Applied to aviation, petroleum, chemical industry, metallurgy, power, paper, medicine, food, wood, tobacco, transportation and other industries.

It is mainly composed of bellows, mesh sleeves and joints. Its inner tube is a thin-walled tube with spiral or annular waveform, and the outer layer of the bellows is a net sleeve, which is woven by stainless steel wire or steel strip according to certain parameters. The joints or flanges at the two ends of the metal hose are matched with the joints or flanges of the customer pipes.

Flange-type metal hose joints with a diameter of 25 mm or more are mainly flange-type under normal working pressure.

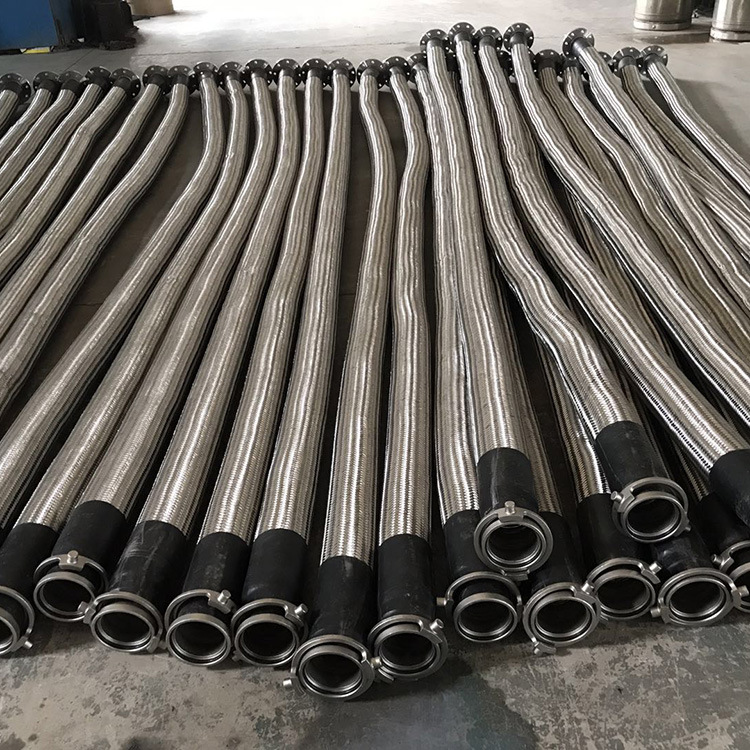

Quick-connection connection connection of all kinds of metal hose with diameter less than 100mm is generally adopted under the condition of quick loading and unloading.

1. product structure: fixed flange metal hose

2. product features: good general performance and strong corrosion resistance.

3. product path: DN100-DN1000

4. product materials:

(1)Flange: carbon steel / stainless steel

(2)Take over: carbon steel / stainless steel

(3)Net cover: stainless steel.

(4) Metal wave tube: SUS304/316

(5)Net cover: SUS304/316
