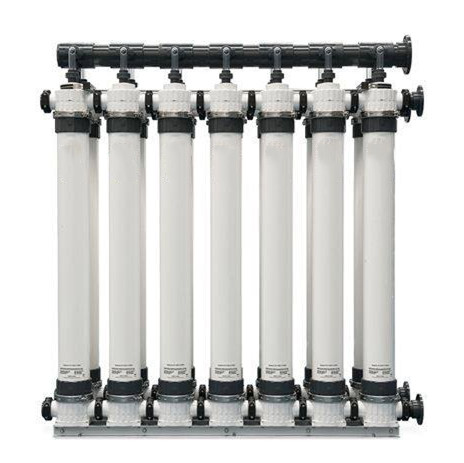

Equal to DOW SFD2860 Drinking water UF membrane
- PRODUCT DETAIL
Specifications

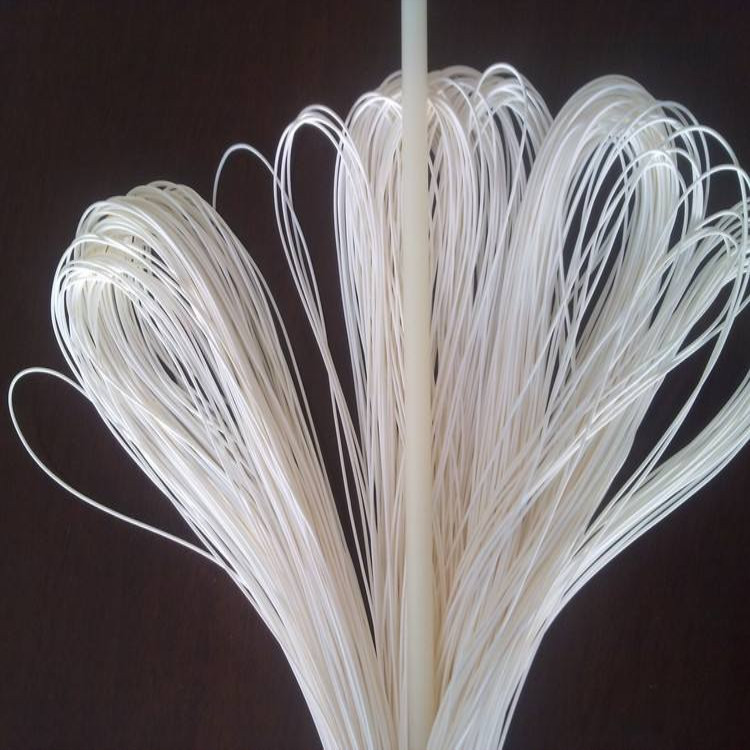

1. Advance PVDF Hollow fiber UF Membrane;
2. Equivalent to DOW UF Membrane SFD-2860 size;
3. Good performance, factory price.

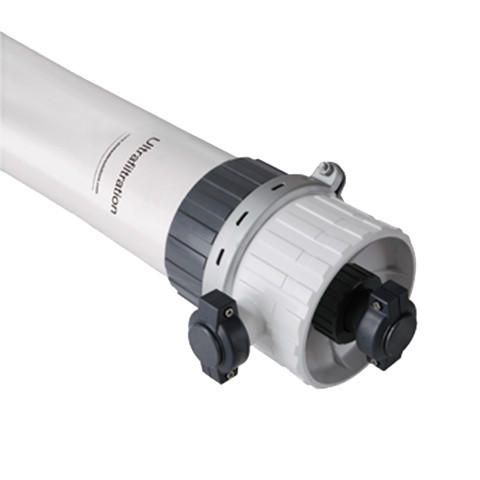

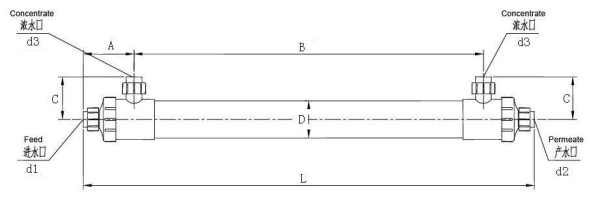

PVDF Outside-in Hollow Fiber UF Membrane

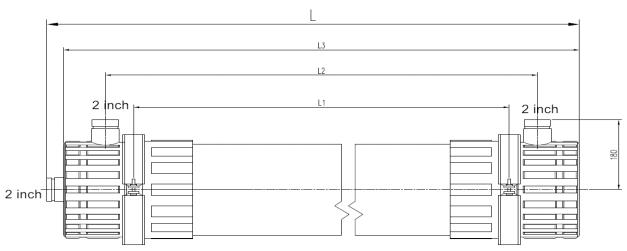

Specification type
Unit
L
L1
L2
L3
D
W1
W2
HT-8060
mm
1860±3
1500
1630±3
1820±3
225
180
342
HT-8080
mm
2360±3
2000
2130±3
2320±3
225
180
342
Basic parameters of membrane module
Component model
HT-4040
HT-6060
HT-8060
HT-8080
HT-1060
Membrane material
Vinylidene fluoride (PVDF)
Inner and outer diameter of filaments
0.7/1.3mm
Average pore size
0.03µm
Membrane area
7m2
32m2
52m2
72m2
55m2
Performance
Pure water initial flux
600~800L/m2·h
Turbidity of water production
≤0.1 NTU
Suspended matter
Raw water is up to grade two emission
≤1mg/L
Coliform group
not detected
Guaranteed useful life
3~5 years
Conditions of use
Operation mode
Outside-in
Operation mode
Constant pressure / constant current
Operation mode
Full filtration or cross flow filtration
Two design flux of sedimentation tank effluent
40~60L/(m2•h)(20℃Pa)
Working temperature
5-45℃
Maximum inflow pressure
0.3MPa
Maximum inflow volume
150L/m2·h
Maximum transmembrane pressure difference
0.15MPa
pH range
2-11(When CIP cleaning 1-12)
Maximum backwash water flow
100-150L/m2·h
Backwash frequency
20~60min
