Product characteristics and parameters

Model

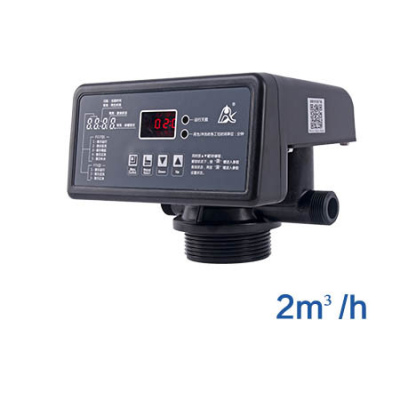

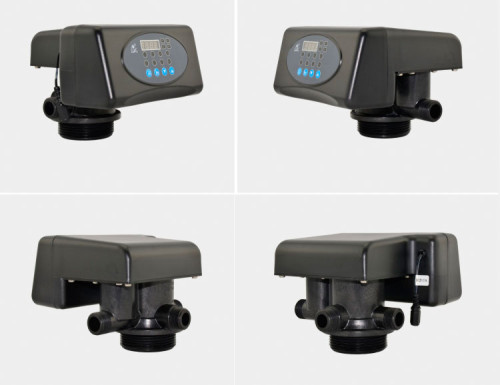

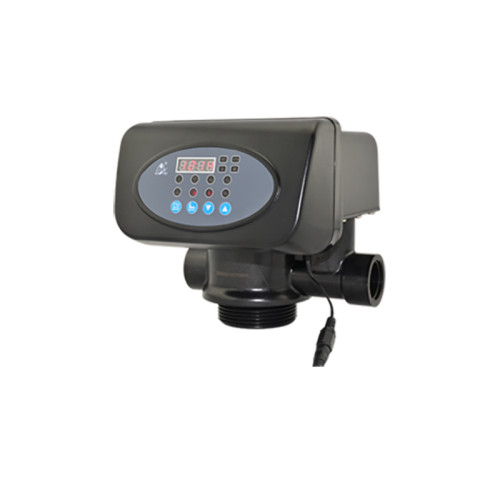

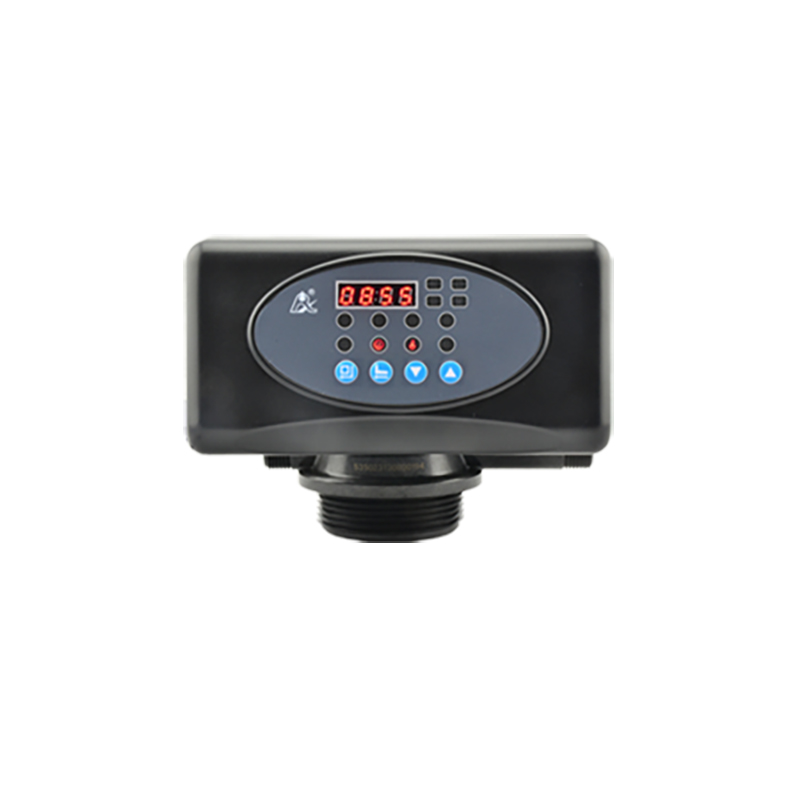

Time type:53502P(F71P1)

Ø Opening and closing of high flatness and corrosion resistant end sealing sheet.

Ø Keyboard lock function, power parameter protection and prompt.

Ø When washing, there is no bypass of raw water. The number of times of repeated washing can be set.

Ø New display mode, simpler operation.

Ø With interlocking function, it can be used as a water supply and separate irrigation system at the same time.

Ø Optional operation by day and hour

Installation method

Top loading

Inlet and outlet

3/4"M

Sewerage

3/4"M

Installation direction

Right entering and left out

Base

2.5"-8NPSM(Canister)

Central tube

1.05"OD

output

2 m3/h

Fit tank

6"~10"

Working pressure

0.15~0.6Mpa

Water inlet temperature

5~50℃

Influent turbidity

<20NTU

Power Supply

Input:AC 100~240V/50~60HZ

Output:DC 12V/1.5A

Application

Activated carbon filter and quartz sand filter

Product Technical Parameter

New model

Old model

Inlet/Outlet

Drain

Salt intake

Base

Central pipe

W.T.C m3/h

Tank Diameter range (in)

Remark

63502P

F71P1

3/4"M

3/4"M

/

2.5"~8NPSM

1.05"OD

2

6"~10"

Filter

63504P

F67P1

1"F

1"F

/

4

6"~12"

Filter

63602P

F65P3

3/4"F

1/2"M

3/8"M

2

6"~12"

DF

63604P

F63P3

1"M

1/2"M

3/8"M

4

6"~18"

DF

73602P

F69P3

3/4"F

1/2"M

3/8"M

2

6"~12"

UF

73604P

F68P3

1"M

1/2"M

3/8"M

4

6"~18"

UF
