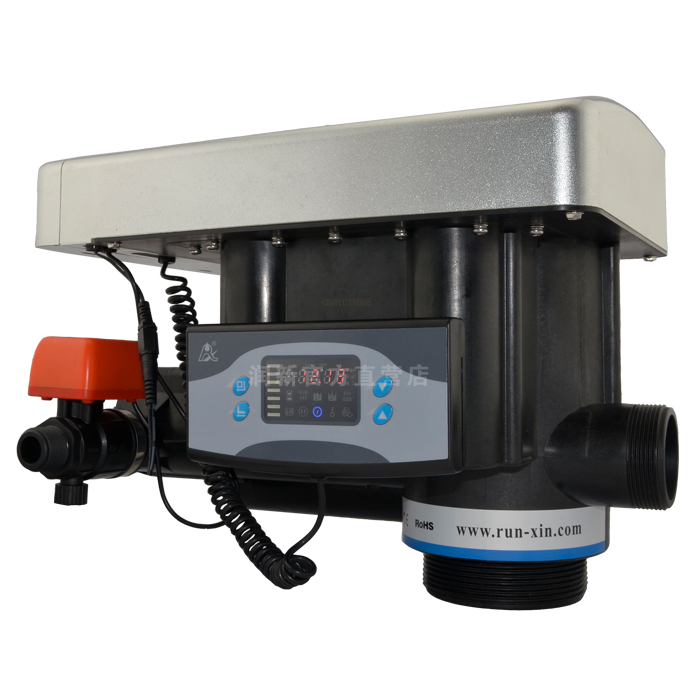

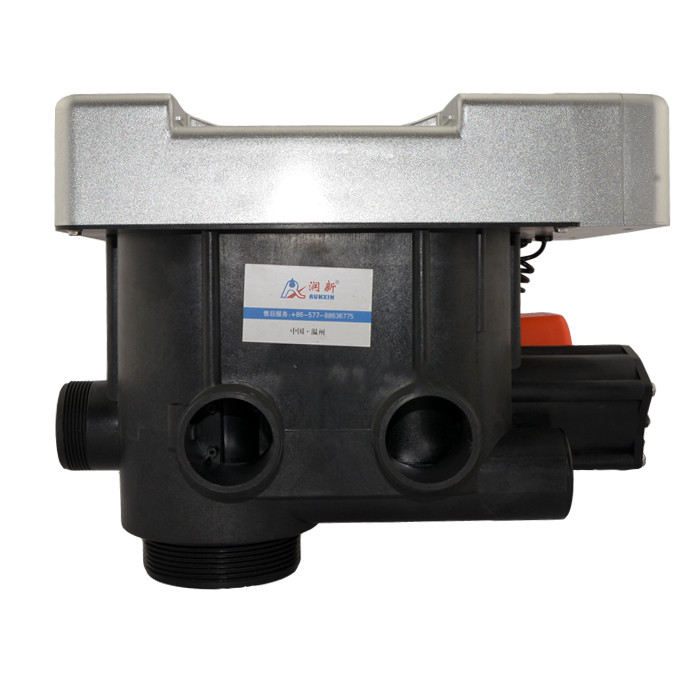

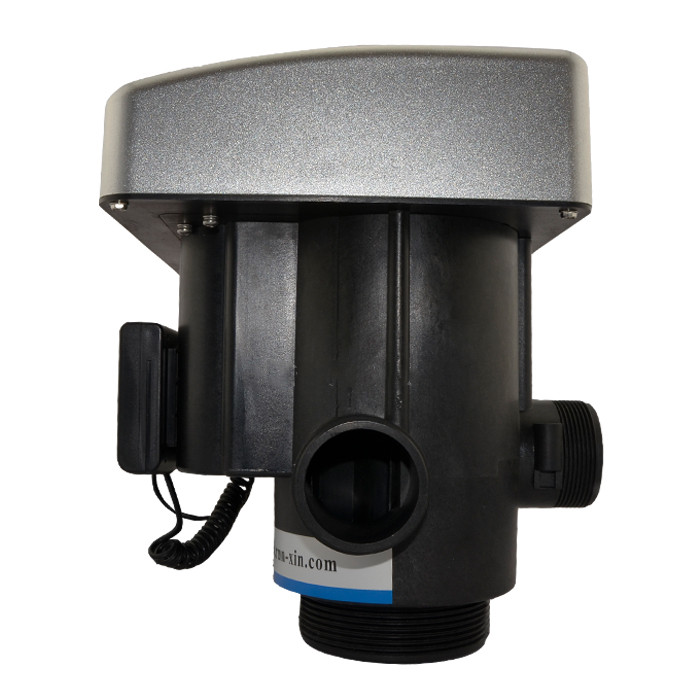

Automatic control valve for water softening F77A1

Product Item: 036
Category: Valves
Views: 1568
Brand:Runxin
Flow:18m3/h
Weight:4kg
Power:36W

PRODUCT DETAIL

Water Softening Automatic control valve

Product parameters

Model	63518(F77A1)	63618(F77A3)
	Time type	Flow pattern
Inlet/Outlet	2"M
Drainage	1.5"M
Salt intake	3/4"M
Base	4"-8 UN
Central tube	1.5"D-GB
Output Flow	18 m3/h
Fit tank	24"~42"
Regeneration mode	Downstream
Working pressure	0.2~0.6Mpa
Water inlet temperature	5~50℃
Relative humidity	≤95%(25℃)
Power Supply	Input:AC 100~240V/50~60HZ Output:DC 24V/1.5A

Explain:

F- Female M-Male OD: Outer Diameter

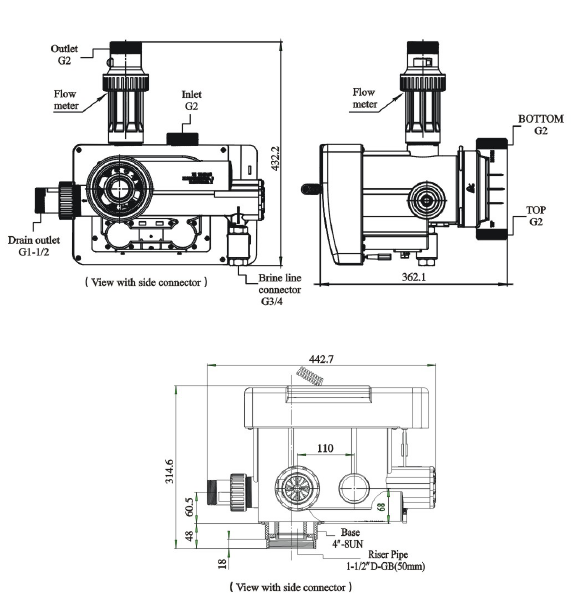

Appearance size

Product characteristics

Manual and automatic control

LED screen display

Press instantly to realize forced regeneration

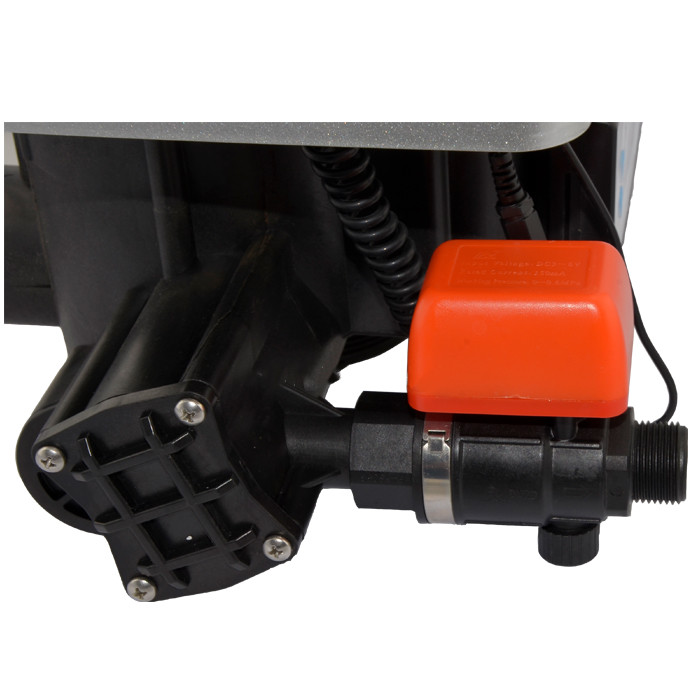

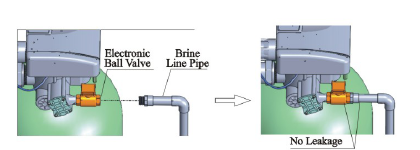

Salt tank replenishment is controlled by electric ball valve, which shortens the regeneration period.

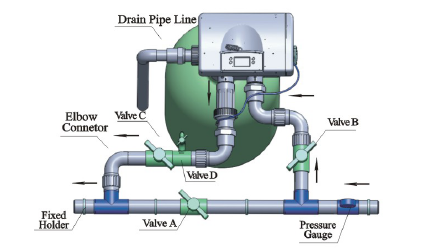

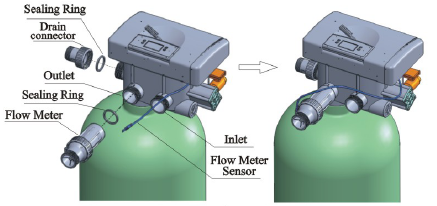

Various installation methods

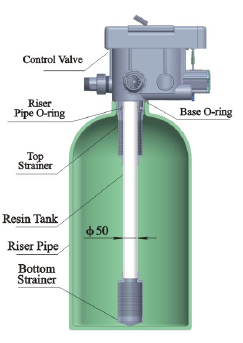

Top install
