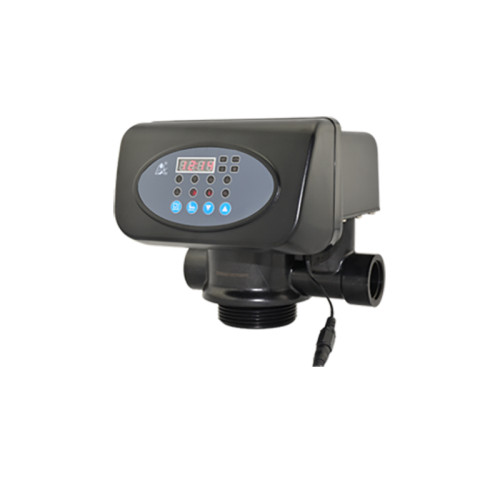

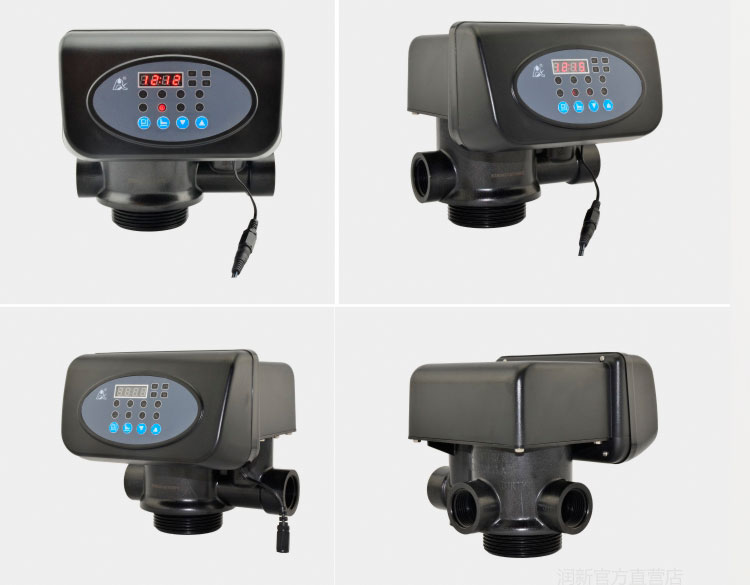

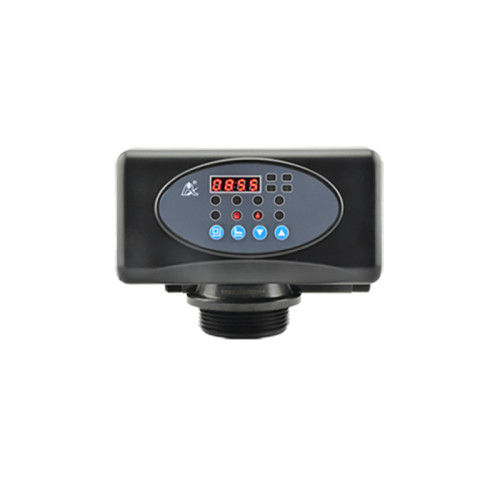

Flow Control Valve for filtration F67P1
- PRODUCT DETAIL
|
Product characteristics and parameters |
Model |
Time type:53504P(F67P1) |
|
Ø Opening and closing of high flatness and corrosion resistant end sealing sheet. Ø Keyboard lock function, power parameter protection and prompt. Ø When washing, there is no bypass of raw water. The number of times of repeated washing can be set. Ø New display mode, simpler operation. Ø With interlocking function, it can be used as a water supply and separate irrigation system at the same time. Ø Optional operation by day and hour |
Installation method |
Top loading |
|
Inlet and outlet |
1"F |
|
|
Sewerage |
1"F |
|
|
Installation direction |
Right entering and left out |
|
|
Base |
2.5"-8 NPSM(Canister) |
|
|
Central tube |
1.05"OD |
|
|
output |
4 m3/h |
|
|
Fit tank |
6"~12" |
|
|
Working pressure |
0.15~0.6Mpa |
|
|
Water inlet temperature |
5~50℃ |
|
|
Influent turbidity |
<20NTU |
|
|
Power Supply |
Input:AC 100~240V/50~60HZ Output:DC 12V/1.5A |
|
|
Application |
Activated carbon filter and quartz sand filter |
F- Female M-Male OD: Outer Diameter
Structure Features

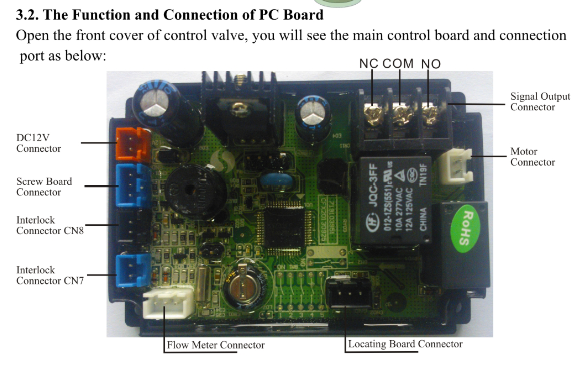

- Locate by optcupler,more stabel performance, F63P,F67P and F68P adopt the same locating board,while F65P,F69P and F71P use the same locating board. They all use the same main control board.

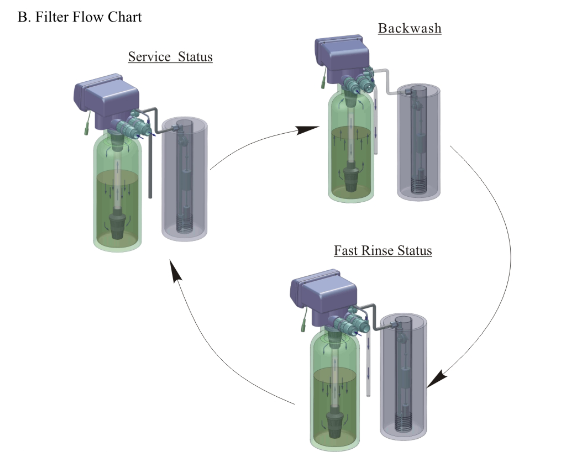

- Hermetic head faces structure, no hard water bypass when regeneration cycle.
- When electrical service recover, program run one cycle then locate at the previous position.
- Cheaper and simpler.

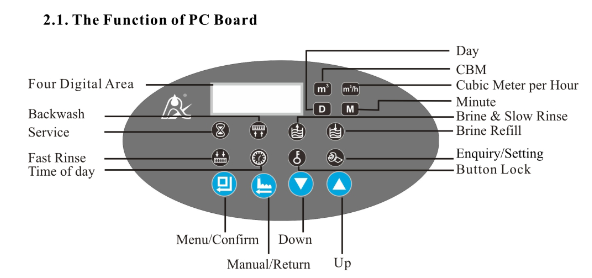

- Indicator display
Applications
- Residential Softener or Filter system.
- Boiler Softener,Ion-Exchange Equipment.
