Technical Parameters:
Water Pressure----------------------------------------------0.15—0.6MPa
Water Temperature-----------------------------------------5℃-45℃
Water Turbidity-----------------------------------------------<20FTU
Inlet/Outlet-----------------------------------------------------1″F
Drain------------------------------------------------------------1″F

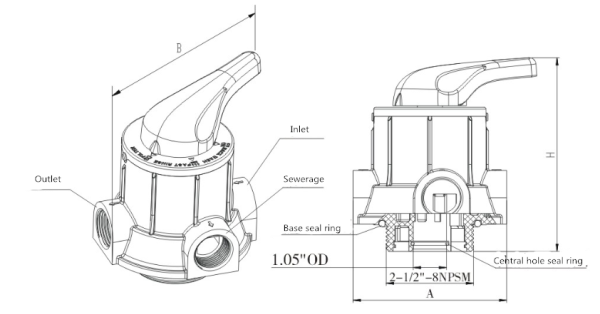

Base-------------------------------------------------------------2.5″-8NPSM
Riser Pipe------------------------------------------------------1.05″OD
Max Flow Rate-------------------------------------------------6 m3/h
Suitable Tank Size (in)---------------------------------------6″~12″

Product Characteristics:
It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
No water passes the valve in rinse in single tank type.
Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
It can be changed to be side-mounted valve with side-mounted connector.
It can operate under pressure, without leakage.

Range of Application:

Water softening

Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
