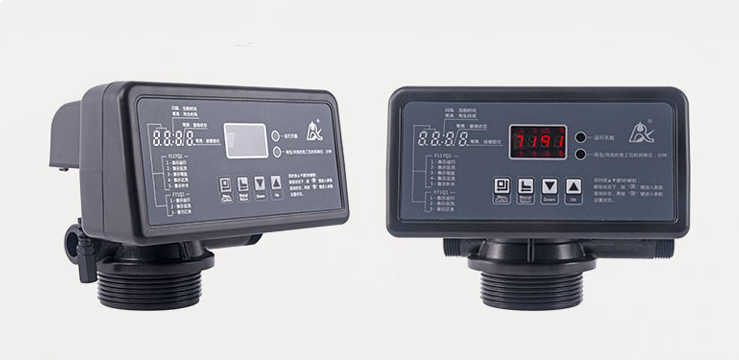

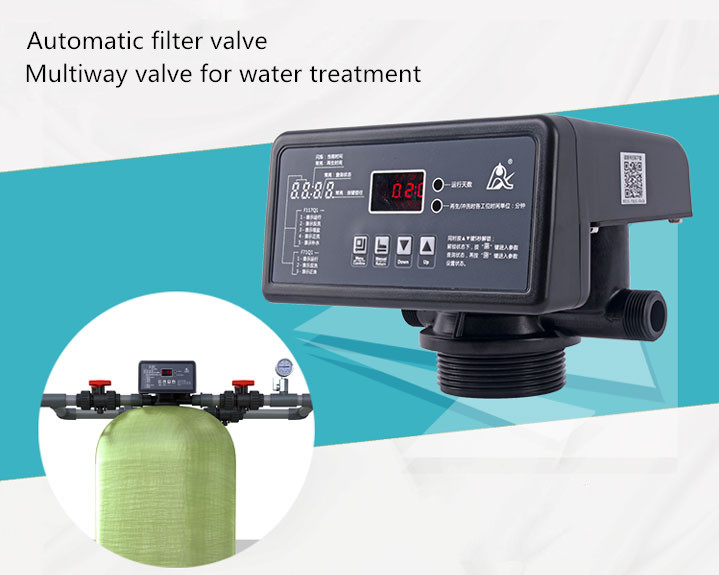

Automatic multichannel control valve for water FRP filter and softner
- PRODUCT DETAIL
| Product characteristics and parameters | Model | Time type:55502(F71Q1) |
|
1.The master panel is combined with the display panel; 2.Four digit tube display. 3.Interlocking signal output function. 4.Power off data memory function.
Application: 1.Household filtration system. 2.Sand filter and activated carbon filter for reverse osmosis pretreatment. |
Flow pattern:55602(F71Q3) | |
| Installation method | Top loading | |
| Inlet and outlet | 3/4"M | |
| Sewerage | 3/4"M | |
| Installation direction | Right entering and left out | |
| Base | 2.5"-8NPSM(Canister) | |
| Central tube | 1.05"OD | |

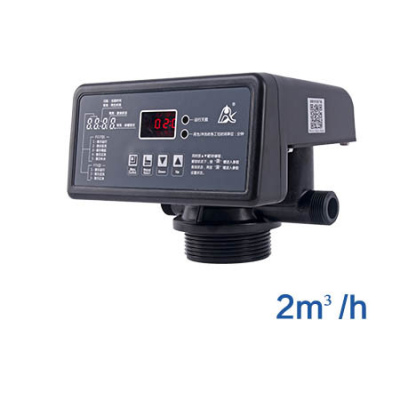

| output | 2 m3/h | |
| Fit tank | 6~10" | |
| Working pressure | 0.15~0.6Mpa | |
| Water inlet temperature | 5~50℃ | |
| Influent turbidity | <20NTU | |
| Power Supply |
Input:AC 100~240V/50~60HZ Output:DC 12V/1.5A |
Explain:
F-Internal teeth,M-External teeth,OD-external diameter,
