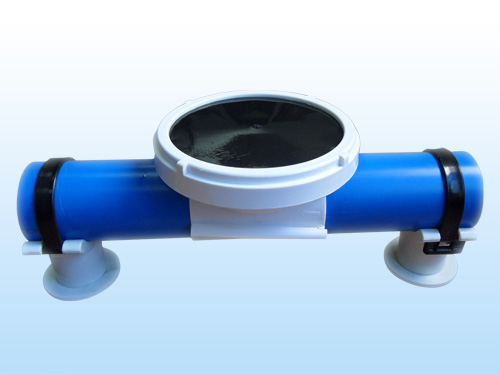

Fine bubble Disc aerator diffuser EPDM WT215
- PRODUCT DETAIL
The diaphragm microporous aerator has small bubble diameter, small gas-liquid interface diameter, large gas-liquid interface area, uniform bubble diffusion, no hole blockage and strong corrosion resistance.
Product parameters
| Disc Diffuser Data | WT 215 |
| Operating flow range (m3/h) | 0.5~4.0 |
| Diffuser density (%) | 2~24 |
| Surface area (m2) | 0.025 |
| Size of bubble(mm) | 1-3 |
| Standard oxygen transfer effciency(4 meters water depth, %) | 20-30 |
| serve area (m2) | 0.2-0.75 |
