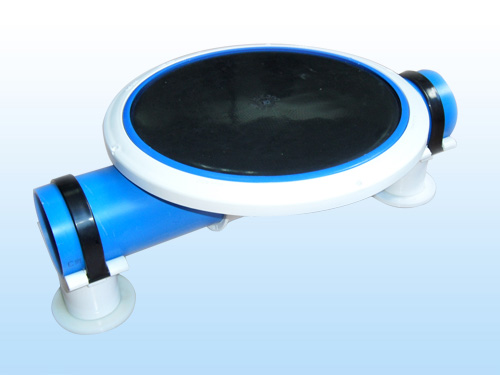

Fine bubble Disc aerator diffuser with EPDM membrane
- PRODUCT DETAIL
The diaphragm microporous aerator has small bubble diameter, small gas-liquid interface diameter, large gas-liquid interface area, uniform bubble diffusion, no hole blockage and strong corrosion resistance.
Product parameters
| Disc Diffuser Model | WT 300 |
| Operating flow range(m3/h) | 1~8 |
| Diffuser density(%) | 2~24 |
| Surface area(m2) | 0.06 |
| Size of bubble(mm) | 1~3 |
| Standard oxygen transfer effciency(4m depth of water,%) | 20~36 |
| serve area(m2) | 0.5-1.5 |

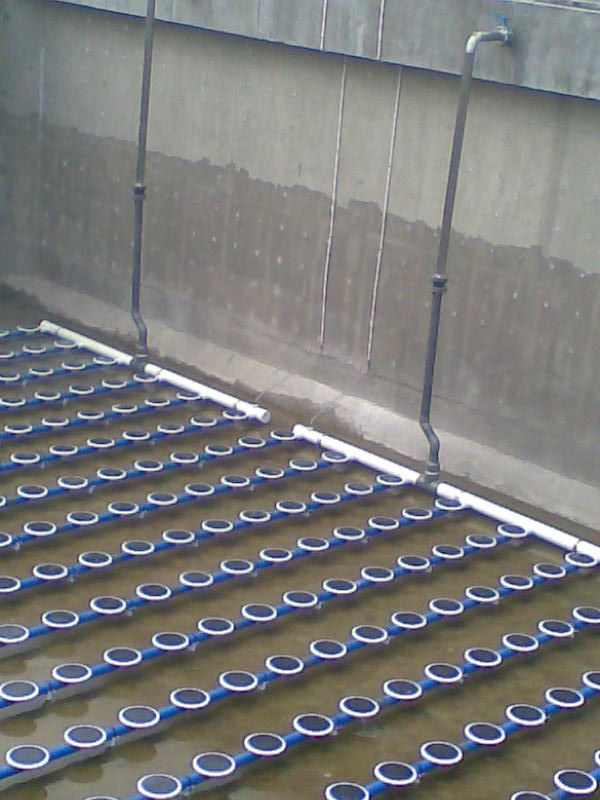

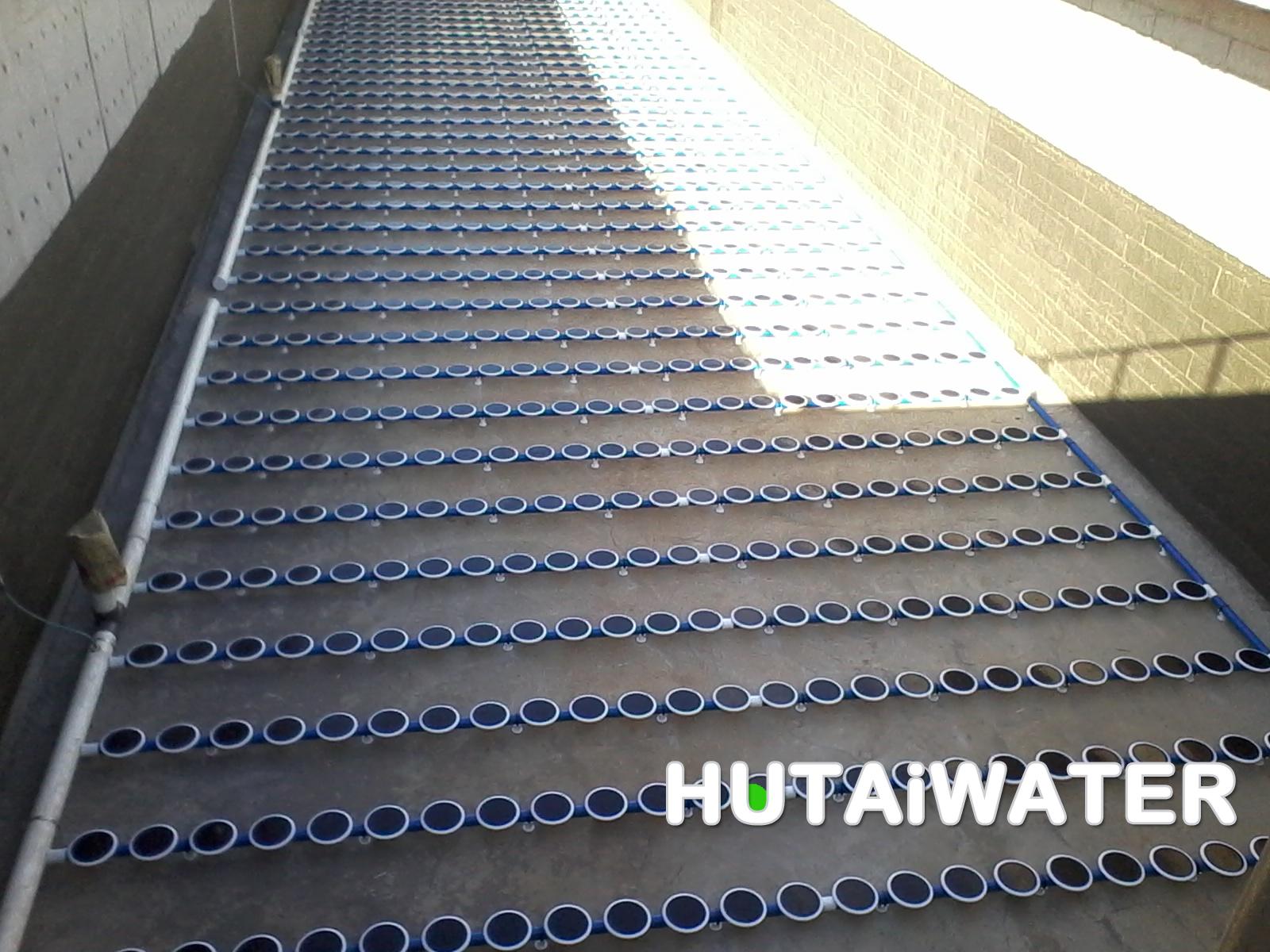

Extension and upgrading of sewage treatment plant,
