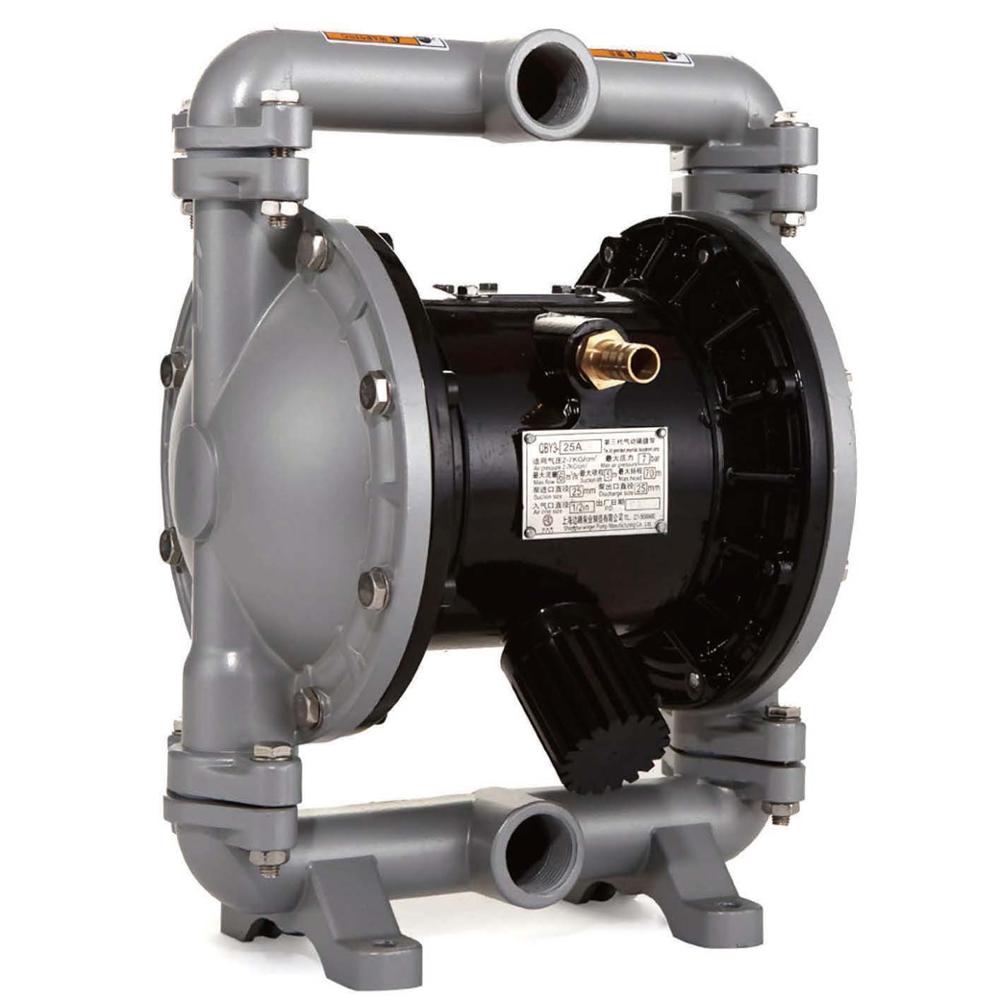

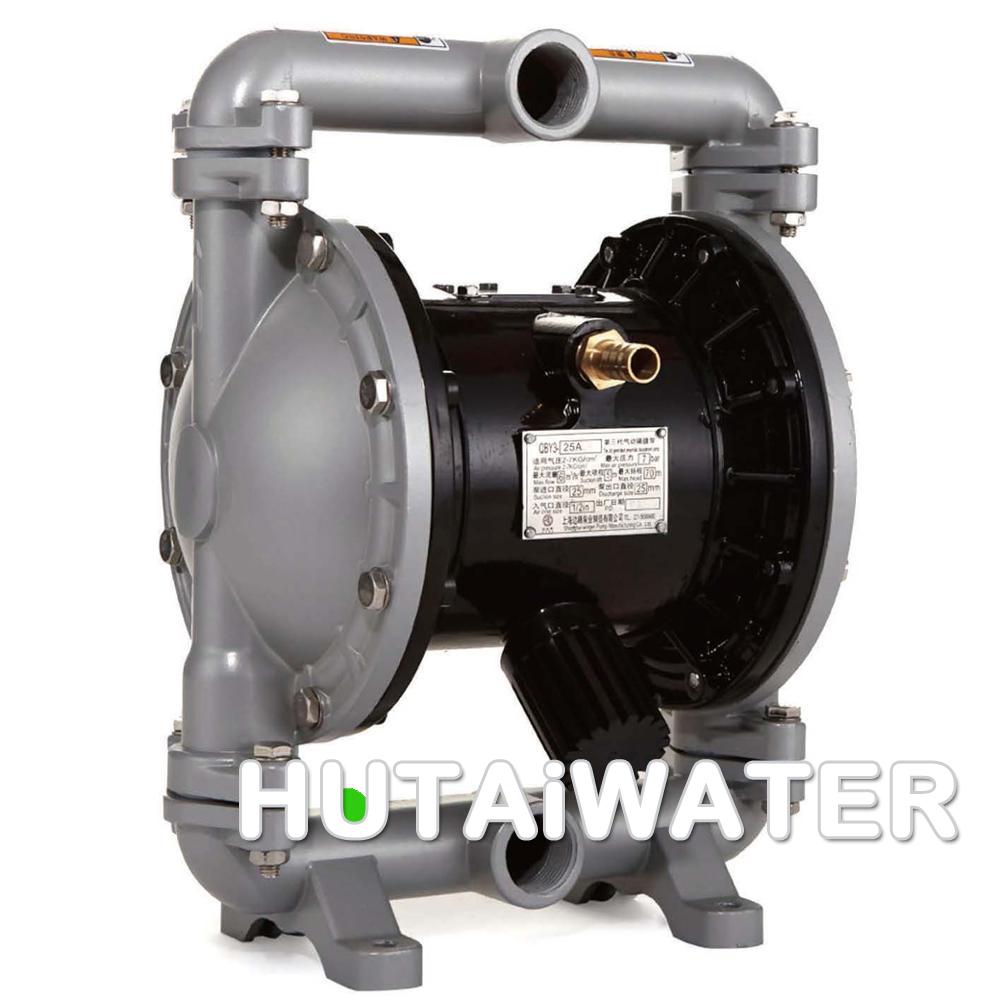

Pneumatic diaphragm pump Aluminum alloy material
- PRODUCT DETAIL
| Max.Flow | 31gpm(116lpm) |
| Max.Working Pressure | 120 psi(0.84 Mpa,8.4 bar) |
| Fluid Inlet Size | 1-1/2 in.npt(f) |
| Fluid Outlet Size | 1-1/2 in.npt(f) |
| Air Inlet Size | 1/2 in. npt(f) |
| Max.Suction Height(dry suction or wet suction) | 18 ft.(5.48m) |
| Max.Permitted Grain | 1/8 in.(3.2mm) |
| Max.Air Consumption | 23.66 scfm |
| Every Reciprocating Flow | 0.15 gal.(0.57L) |
| Max.Reciprocating Speed | 276 cpm |
| Materials of main pump structure | cast steel,Aluminun alloy,PP stainles steel and PTFE |
