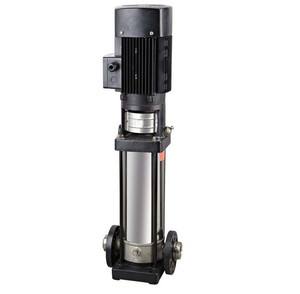

Vertical Multistage Pump

Product Item: 24
Category: PUMP
Views: 944
Brand Name: Hutai
Weight: 50KG
Material: SUS304
Warranty: 1 Year

PRODUCT DETAIL

Supply Ability

Supply Ability:: 200 Set/Sets per Month

Packaging & Delivery

Packaging Details: Wooden case and Carton

Port: Shanghai,Ningbo

Lead Time :

Quantity(Sets)	1 - 20	>20
Est. Time(day)	30	To be negotiated

Specifications

CNP pump CDL/CDLF series :
1.vertical non-self priming multistage centrifugal pump
2. 0.4-240m3/h.
3. 220V/380V, 50HZ/60HZ

CNP multistage centrifugal Pump

CDL/CDLF is a kind of vertical non-self priming multistage centrifugal pump,which is driven by a standard electric motor.The motor output shaft directly connects with the pump shaft through a coupling.The pressure-resistant cylinder and flow passage components are fixed between pump head and in-and outlet section with tie-bar bolts.The inlet and outlet are located at the pump bottom at the same plane.This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running,out-of-phase and overload.

Electric Motor

Full-enclosed air-blast two-pole standard motor

Protection class: IP55

Insulation class: F

Standard voltage: 50HZ: 1X220-230/240V

3X200-220/346-380V

3X220-240/380-415V

3X380-415V

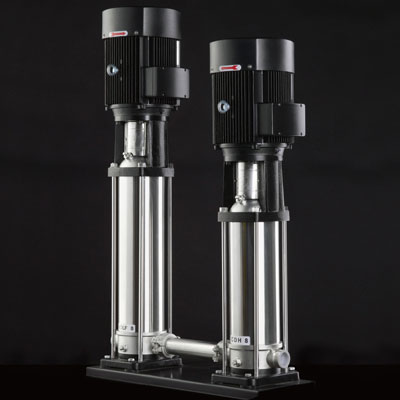

CDL,CDLF Vertical Multistage Stainless Steel Centrifugal Pump

Application:

Cooling water system

Municipal water supply and boosting
